Atlas IED APX40TN

SKU: ATS-APX40TN

MPN: APX40TN

Description

Contant Directivity Horn Speaker 70v 40w 60°x40°Rotating Bell Light Grey

Add to Wishlist

Send to a friend!

Frequency Response 400Hz – 7.5kHz
Sensitivity 107dB
Power Taps 2.5, 10, 20, 30, 40 @ 70.7V
Power Rating 40 watts
Height 10 1/4″ (26.035 cm)
Width 14 1/2″ (36.83 cm)
Depth 13 1/4″ (33.655 cm)
Shipping Weight 9.00 lbs (4.08 kgs)
Color Pantone Warm Gray 3 C – RAL 7044
Operating Temperature Range -20C to 70C
Warranty Period 60 months from date of purchase

40 Watt Model Provides Better Output Over Competitive 15 and 30-Watt Standards
Built-in Screen Protects Against Bug Nesting
Coverage of 60° x 40° Across a Wide Frequency Range for Predictable Beamwidth Control
Loudspeaker is Molded of High-Impact, Neutral-Grey Polycarbonate Resin with UV Light Inhibitor
Rotating Bell Pivots in 15° Increments for Exact On-Site Positioning of Projection Angles Detailed in Acoustic Simulation Programs
Universal 25/70/100V Transformer Includes a Rotary-Dial Selector for Easy Tap Identification
Zinc die cast mounting bracket may be mounted to standard E.O. boxes banded to poles or removed for easy retrofit of existing AP Series loudspeakers.

Speaker Type:
70 Volt
Type:
Horn Speaker
Brand:
Atlas

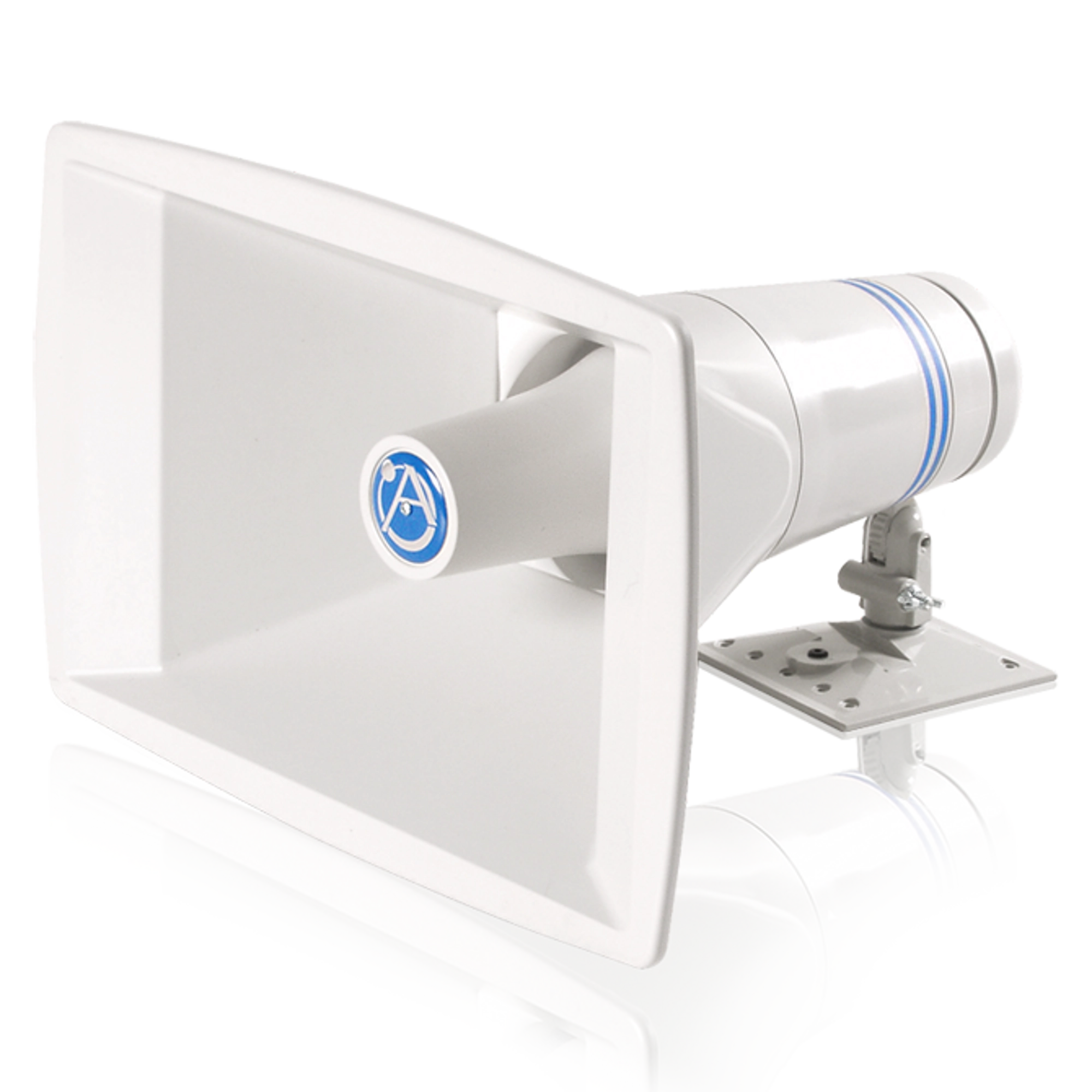

Constant-Directivity 40W Paging Speaker with Rotating Bell

APX40TN

Model APX40TN is a conservatively-rated, 40 watt constant-directivity paging speaker for use in public address or paging applications. It combines constant-directivity with superior engineering design, achieving extraordinary performance with quick and easy installation.

This constant-directivity speaker offer exact positioning flexibility with a simple twist of the wrist. The APX speaker is well-suited for indoor applications including commercial, light industrial, and large retail/distribution applications where clear and pleasant indoor paging/communications and security are required. The speaker is also appropriate for installation in outdoor retail, commercial, recreational, and public use areas where dependable weatherproof performance is needed for communications and security.

The neutral-grey finish compliments most interior or exterior surroundings. It may also be painted to match installation guidelines or cosmetics.
