Altronix RBR1224

Input

Voltage:

• 12VDC or 24VDC operation
• Positive (+) or negative () ultra sensitive trigger (3VDC to 24VDC @ 20mA minimum).
• Current Draw: 20mA

Contact Rating

• DPDT contacts rated at 0.5A/120VAC or 2A/28VDC.

Indicators (LED)

• Trigger: Relay is triggered
• Remote LED status output

Temperature

• Operating temperature: -25ºC to 55ºC (-13ºF to 131ºF).
• Storage temperature: -25ºC to 70ºC (-13ºF to 158ºF).
• Relative Humidity: 85% +/-5%.

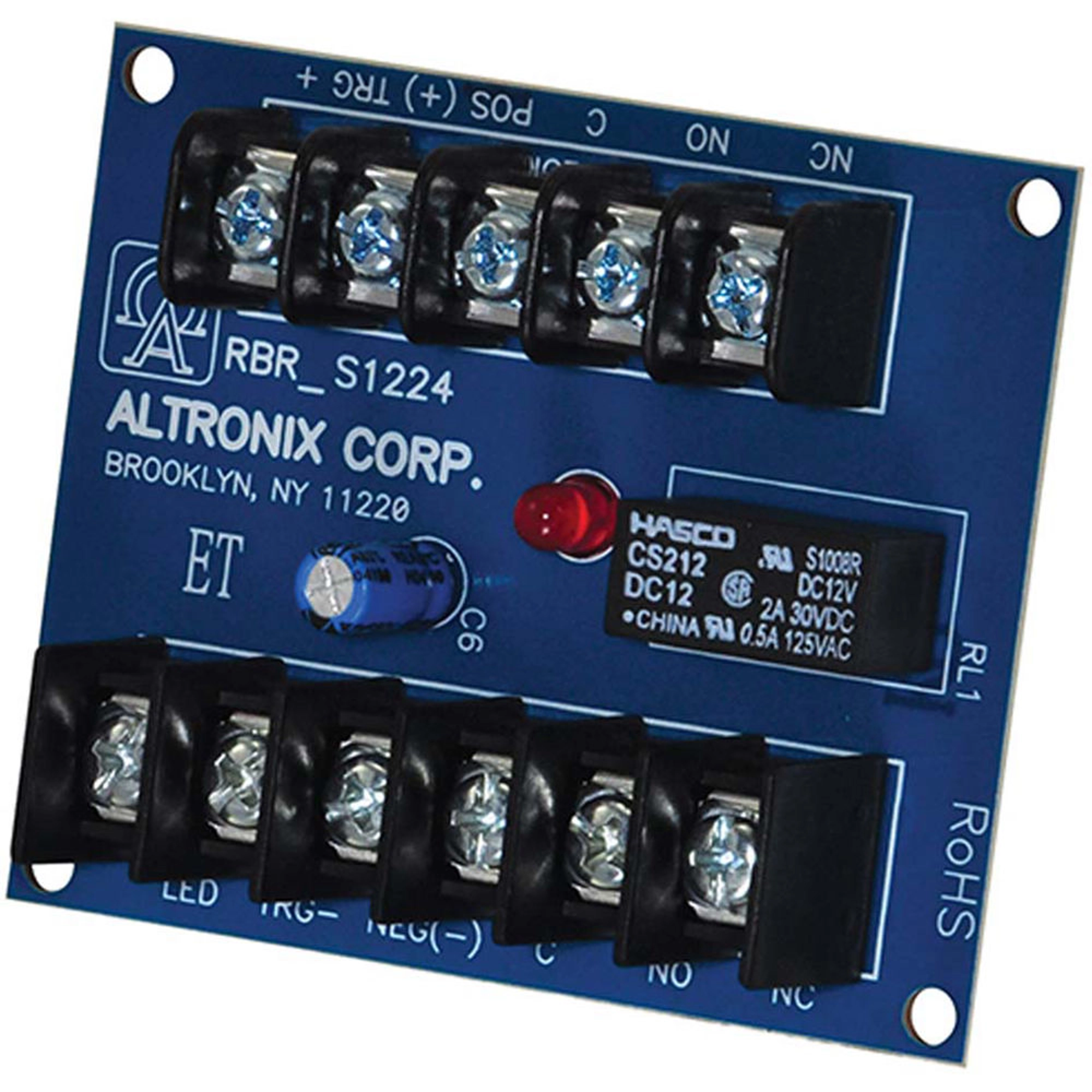

Toggle Ratchet Relay Module 12/24VDC

RBR1224

Altronix RBR1224 Electronic Toggle/Ratchet Relay works with PGM alarm control panels, door control, keypads and more.

• Cutsheet
