Altronix R2432300ULCB

Input

• 115VAC, 50/60Hz, 3A.

Output

• Thirty-two (32) PTC protected Class 2 Rated power limited outputs (auto-resettable).
• 24VAC @ 12.5A (300VA) supply current (0.39A per device, 2.5A max.) or 28VAC @ 10A (280VA) supply current (0.3125A per device, 2.5A max.).
• Outputs are rated @ 2.5A.
• Surge suppression.

Electrical

Temperature:

• Operating: 0° C to 49° C (32° F to 120° F).
• Storage: – 20° C to 70° C ( – 4° F to 158° F).
• Relative Humidity 85% +/- 5%.

BTU/Hr (approx.):

• 24VDC: 154 BTU/Hr.
• 28VDC: 143 BTU/Hr.
• System AC input VA requirement: 345VA.

• Thirty-two (32) power LEDs.
• Illuminated master power disconnect circuit breaker with manual reset.
• 3-wire grounded line cord.
• Removable terminal blocks with locking screw flange.

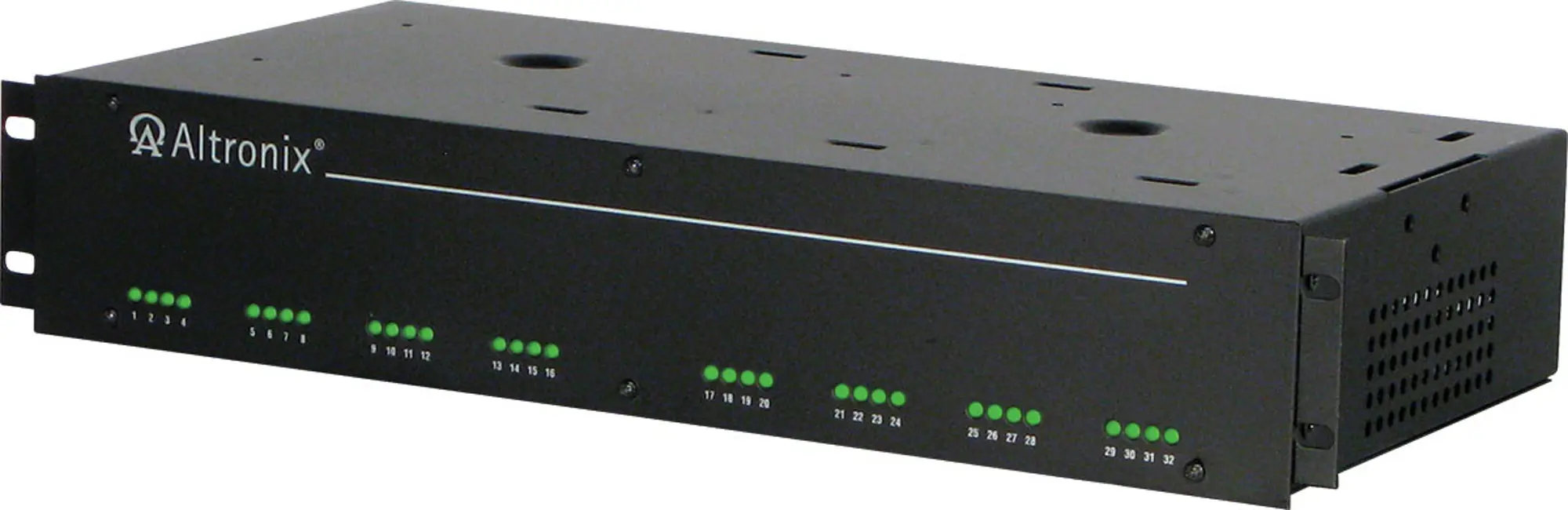

32-Output Power Supply 24/28VAC 2U Rack Mount

R2432300ULCB

R2432300ULCB provides 24VAC or 28VAC distributed via thirty-two (32) PTC protected Class 2 Rated power limited outputs for powering CCTV cameras, heaters and other video accessories.
