Altronix P1MM

Standards

• Class 1 FDA and IEC60825-1 Laser Safety Compliant.
• Compliant with MSA SFP Specification.

Connector Type

• LC Duplex.

Data Rate

• Up to 1.25Gbps.

Wave

• 850nm VCESL Laser Transmitter.

TX power (dBm)

• -18 ~ 0

RX Sensitivity (dBm)

• -8 ~ -4

Distance

• 550m with 50/125 micron MMF.

Temperature

• Operating Temperature: -40ºC to 75ºC (-40ºF to 167ºF).
• Storage Temperature: – 40ºC to 85ºC (-40º to 185ºF).
• Relative Humidity 85% +/- 5%.

• IEEE 802.3a compliant.
• Spans distances up to 550m (1804 ft.)
• Conforms to (SFP) Small Form-Factor Pluggable Multi-Source Agreement (MSA).

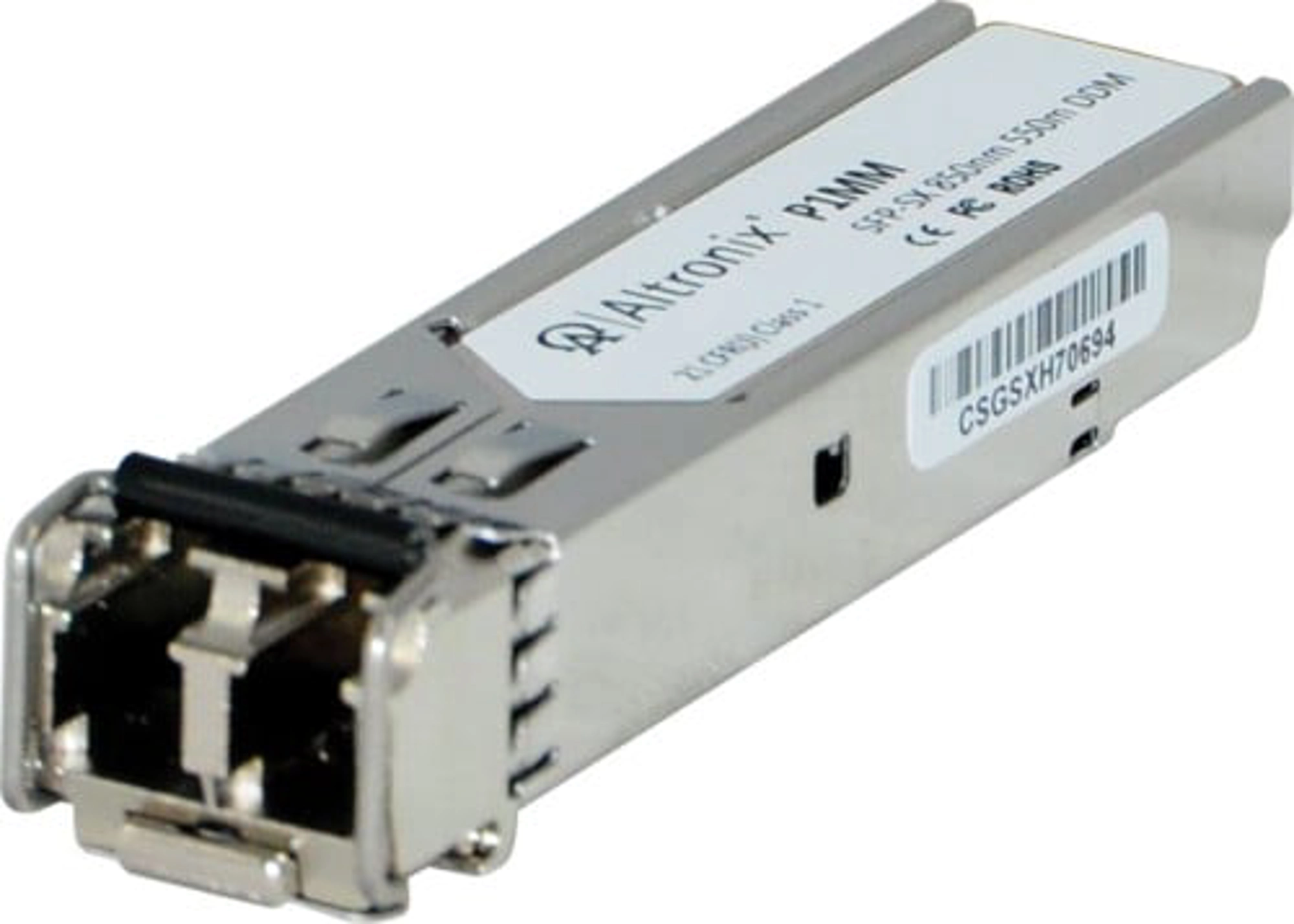

SFP Multi-Mode Transceiver

P1MM

Altronix P1MM are hot-pluggable SFP fiber transceiver modules and are readily usable with all Altronix Spectrum fiber optic equipment for 1G transmission rates. The P1MM is to be used with Multi-Mode Fiber for distances up to 550m. It is recommended to pair (two per fiber link) remote and headend with same SFP module.
