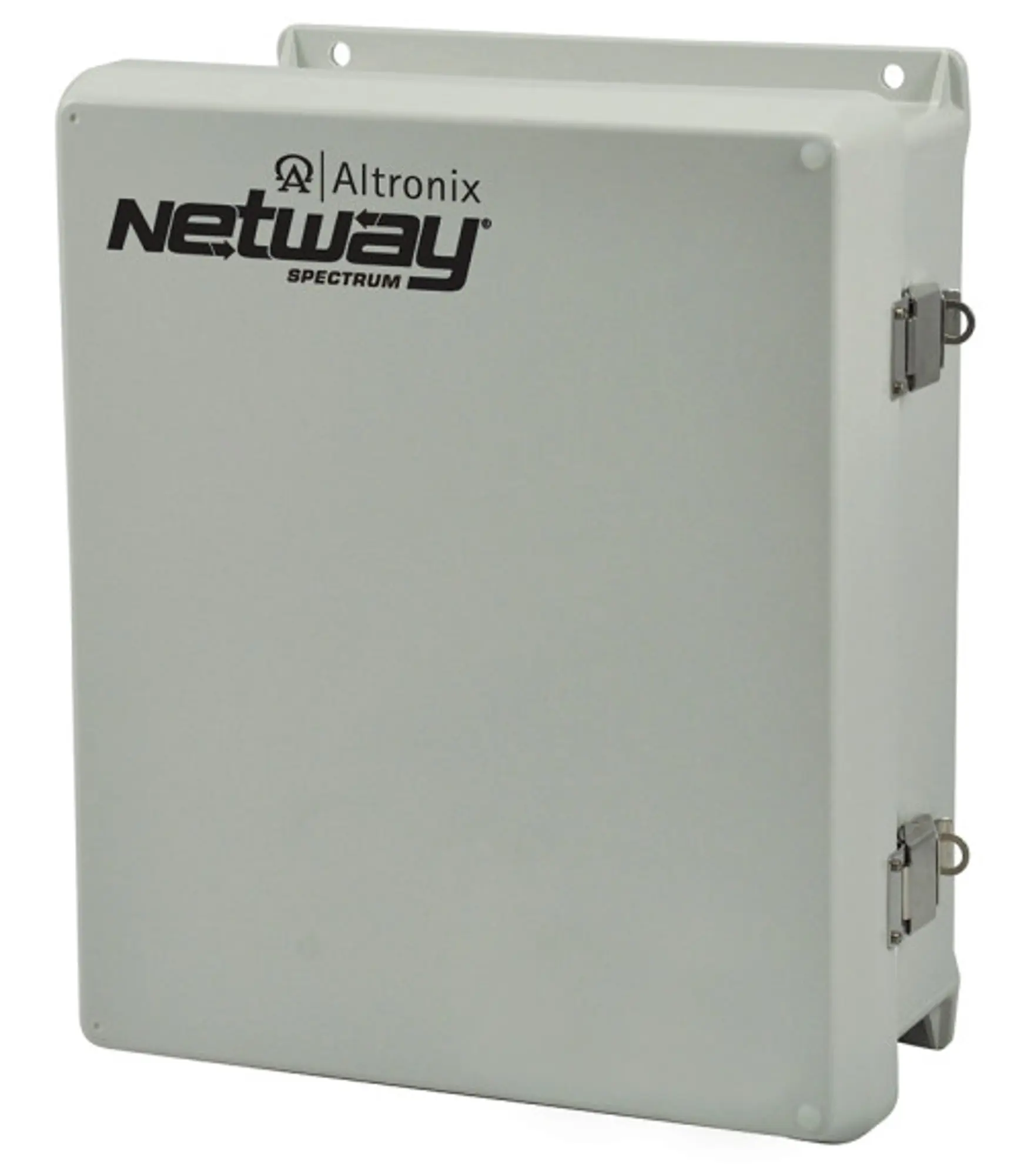

Altronix NetWaySP8LWPX

SKU: ALT-NETWAYSP8LWPX

MPN: NETWAYSP8LWPX

Description

8-Port Hardened PoE+ Switch Dual Gigabit SFP Uplink with Power Supply Charger with Enclosure 75w Budget NEMA 4X IP66

Add to Wishlist

Send to a friend!

Input

115VAC, 60 Hz, 2.5A or 230VAC, 50/60 Hz, 1.3A.

Power Output

Eight (8) ports PoE+ (30W) up to two (2) Hi-PoE (60W) ports.
IEEE 802.3at (30W) and IEEE 802.3af (15W) compliant.
75W total power.
(Note: connected devices in total not to exceed 75W).
Integral surge protection.

Fiber Port

Two (2) Gigabit SFP ports.
Use with SFP module 1000Base-X (1Gb), compliant to Class 1 laser product (not included).

Ethernet Ports

Six (6) 10/100 Mbps and two (2) 10/100/1000 Mbps ports.
Connectivity: RJ45, auto-crossover.
Wire type: 4-pair Cat-5 or better structured cable.
Distance: up to 100m.
Speed: 10/100/1000Mbps, half/full duplex, auto negotiation.

Battery Charging

Built-in charger for 12V LiFePO₄ (Lithium Iron Phosphate) battery.
Caution: Do not use lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails.
(Batteries are sold separately).

Indicators (LED)

Individual PoE On LEDs for each port.
Individual IP Link status, 10/100/1000 Base-T/active LEDs for each port.
ALOS LED indicates fiber connection for SFP port.
Heartbeat LED indicates proper operation of the unit.

VLAN

Multiple management VLAN assignment
802.1Q Tagged VLAN. Up to 10 VLAN groups. ID Range 2-4095

LINQ Technology

Remote network management allows for camera/device reset and monitoring.
Provides local and/or remote access to critical information via LAN/WAN.
Email and Windows Dashboard Alert notifications report real-time diagnostics.
Event log tracks history.

Temperature

Operating:

60W: – 40° C to 75° C ( – 40° F to 167° F).
75W: – 40° C to 70° C ( – 40° F to 158° F).
Storage: – 40° C to 85° C ( – 40° F to 185° F).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.): 61 BTU/Hr.

Operating Altitude

– 304.8 to 2,000m.

Input

115VAC, 60 Hz, 2.5A or 230VAC, 50/60 Hz, 1.3A.

Power Output

Eight (8) ports PoE+ (30W) up to two (2) Hi-PoE (60W) ports.
IEEE 802.3at (30W) and IEEE 802.3af (15W) compliant.
75W total power.
(Note: connected devices in total not to exceed 75W).
Integral surge protection.

Fiber Port

Two (2) Gigabit SFP ports.
Use with SFP module 1000Base-X (1Gb), compliant to Class 1 laser product (not included).

Ethernet Ports

Six (6) 10/100 Mbps and two (2) 10/100/1000 Mbps ports.
Connectivity: RJ45, auto-crossover.
Wire type: 4-pair Cat-5 or better structured cable.
Distance: up to 100m.
Speed: 10/100/1000Mbps, half/full duplex, auto negotiation.

Battery Charging

Built-in charger for 12V LiFePO₄ (Lithium Iron Phosphate) battery.
Caution: Do not use lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails.
(Batteries are sold separately).

Indicators (LED)

Individual PoE On LEDs for each port.
Individual IP Link status, 10/100/1000 Base-T/active LEDs for each port.
ALOS LED indicates fiber connection for SFP port.
Heartbeat LED indicates proper operation of the unit.

VLAN

Multiple management VLAN assignment
802.1Q Tagged VLAN. Up to 10 VLAN groups. ID Range 2-4095

LINQ Technology

Remote network management allows for camera/device reset and monitoring.
Provides local and/or remote access to critical information via LAN/WAN.
Email and Windows Dashboard Alert notifications report real-time diagnostics.
Event log tracks history.

Temperature

Operating:

60W: – 40° C to 75° C ( – 40° F to 167° F).
75W: – 40° C to 70° C ( – 40° F to 158° F).
Storage: – 40° C to 85° C ( – 40° F to 185° F).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.): 61 BTU/Hr.

Operating Altitude

– 304.8 to 2,000m.

Brand:
Altronix
Type:
PoE

8-Port Hardened PoE+ Switch Dual Gigabit SFP Uplink with Power Supply Charger with NEMA Enclosure

NetWaySP8LWPX

Altronix NetWaySP8LWPX Outdoor PoE+ Hardened Switch provides two (2) 1Gb SFP (Fiber) ports and eight (8) PoE+ (30W) or two (2) Hi-PoE (60W) ports, passing data for PoE/PoE+/Hi-PoE compliant devices. Cameras/edge devices may be located up to 100m from the unit. Embedded LINQ Technology allows you to monitor, control and report power and diagnostics from anywhere. These units are designed to support a single 12V LiFePO₄ (Lithium Iron Phosphate) battery for high storage and charge/discharge cycle life reliability.
