Altronix LPS3C24X

Input

• 115VAC 50/60Hz rated @ 0.7A.

Output

• 24VDC output.
• 2.5A continuous supply current.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.

Battery Charging

• Battery leads included.
• Built-in charger for sealed lead acid or gel type batteries.
• Maximum charge current 0.5A.
• Automatic switch over to stand-by battery when AC fails (zero voltage drop).
• Fused battery protection (circuit breaker available).
• (Batteries are sold separately).

Visual Indicators

• AC/DC power LED indicator.

Electrical

Temperature:

• Operating: 0° C to 49° C (32° F to 120° F).
• Storage: – 20° C to 70° C ( – 4° F to 158° F).
• Relative Humidity: 85% +/- 5%.
• BTU/Hr. (approx.): 31 BTU/Hr.

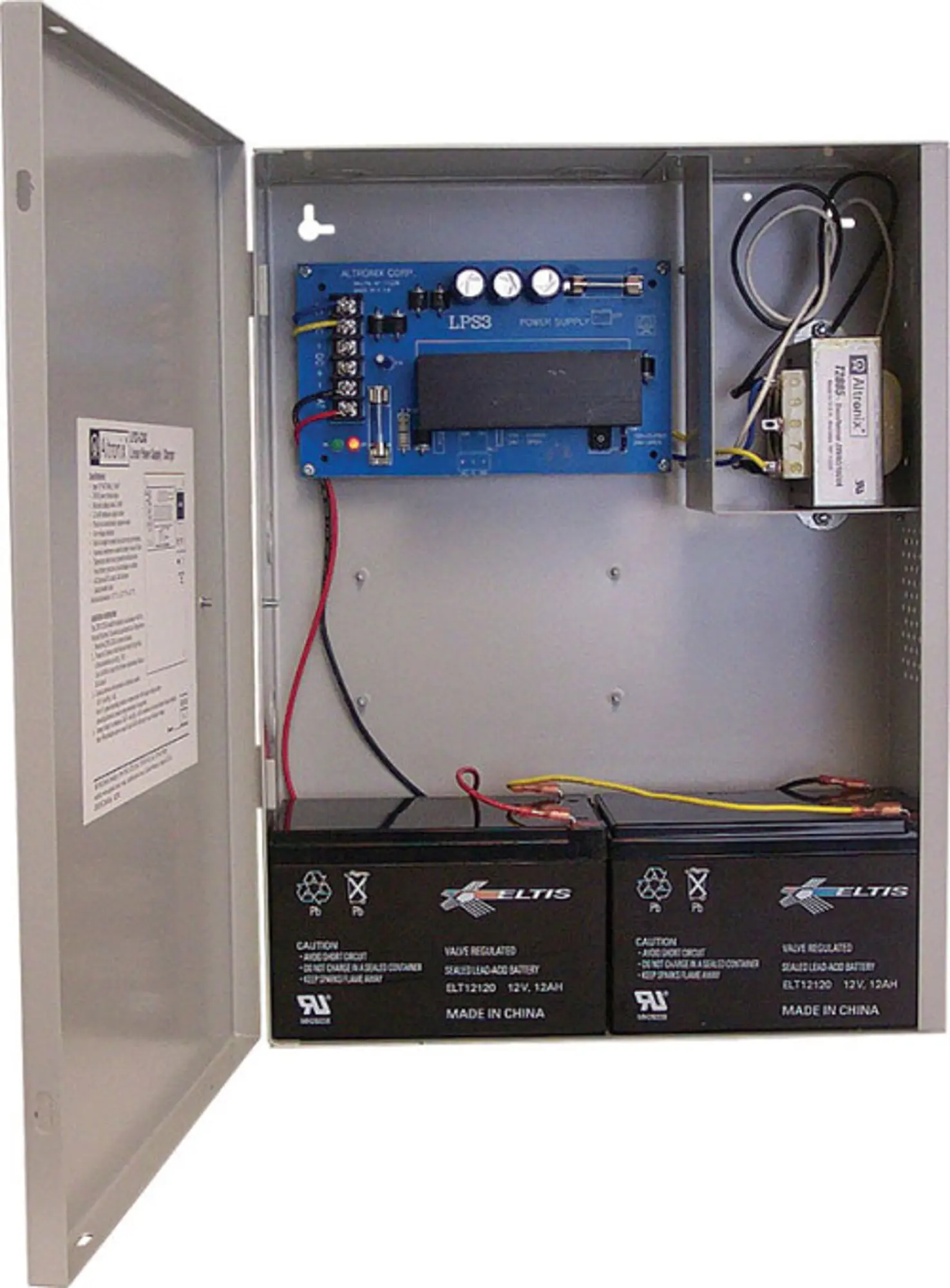

1-Output Linear Power Supply Charger with Enclosure 24VDC 2.5A

LPS3C24X

Altronix LPS3C24X is specifically designed to provide the power needed by the most demanding security and access control applications. It converts a 115VAC 50/60Hz input to a 24VDC, 2.5A output.
