Altronix eFlow4N

SKU: ALT-EFLOW4N

MPN: EFLOW4N

Description

1-Output Power Supply with Enclosure 12/24VDC 4A FAI Class 2 Power-Limited UL294

Add to Wishlist

Send to a friend!

Input

120VAC, 60Hz, 3.5A.
Input fuse: 5A/250V.

Output

12VDC or 24VDC selectable output.
12VDC or 24VDC @ 4.0A supply current.
Class 2 power-limited output.
Auxiliary Class 2 Power-Limited output rated @ 1A (unswitched).
Overvoltage Protection.

Battery Charging

Built-in charger for sealed lead acid or gel type batteries.
Maximum charge current: 1.54A.
Automatic switch over to stand-by battery when AC fails.
Transfer to stand-by battery power is instantaneous with no interruption.
(Batteries are sold separately).

Supervision

AC fail supervision (form “C” contacts).
Notification trigger is selectable for 30 seconds (factory set) or 2 hours.
Battery fail & presence supervision (form “C” contacts).
Low power shutdown. Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.

Fire Alarm Disconnect

Supervised Fire Alarm disconnect (latching or non-latching) 10K EOL resistor. Operates on a normally open (NO) or normally closed (NC) trigger.

Electrical

Temperature:

Operating: 0° C to 49° C (32° F to 120° F).
Storage: – 20° C to 70° C ( – 4° F to 158° F).
Relative Humidity: 85% +/- 5%.

BTU/Hr. (approx.):

12VDC: 12 BTU/Hr.
24VDC: 49 BTU/Hr.
System AC input VA requirement: 420VA.

Visual Indicators

Green AC Power LED indicates 120VAC present.
AC input and DC output LED indicators.

Additional Features

Short circuit and overload protection.

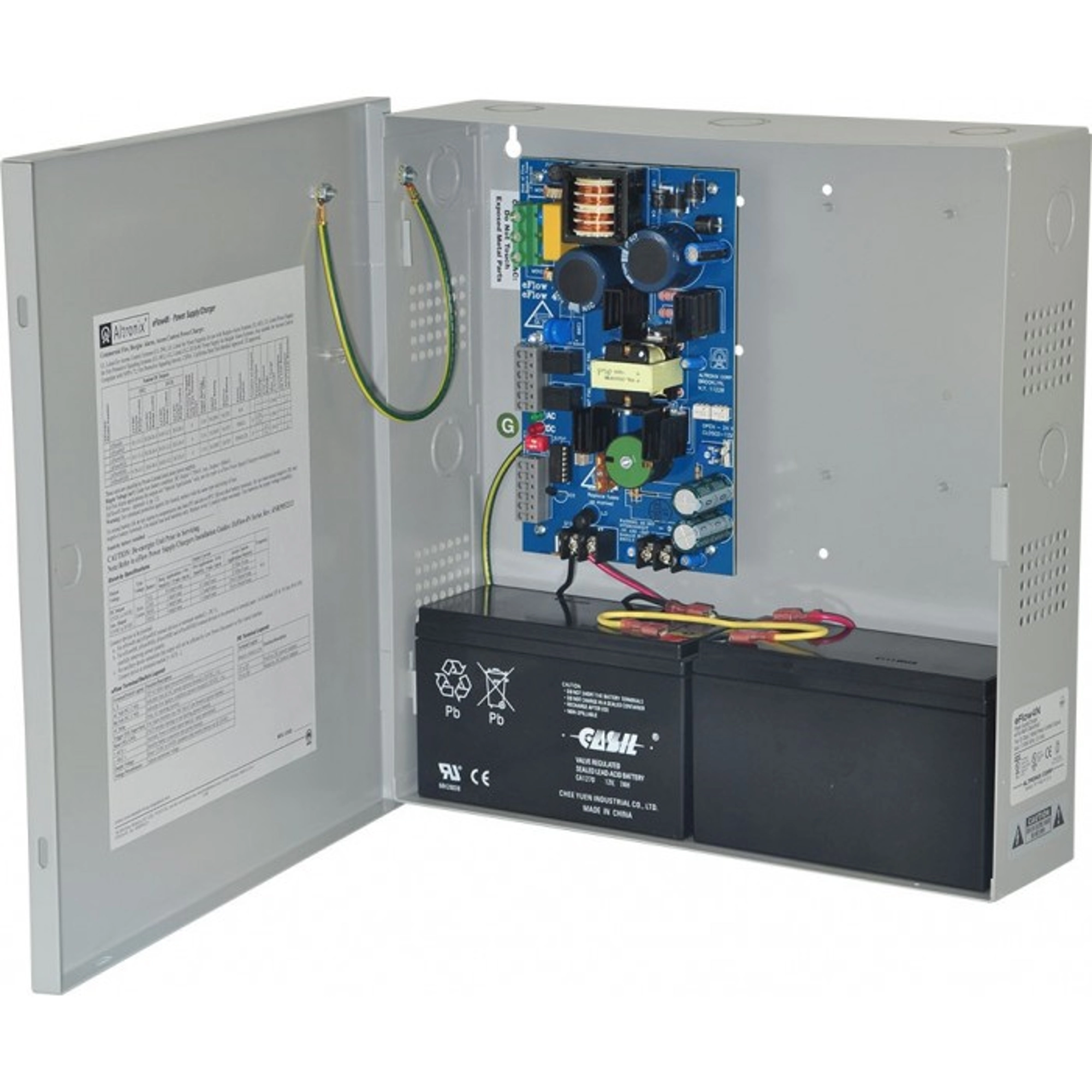

Unit is complete with power supply, enclosure, battery leads and cam lock.

1-Output Power Supply Charger with Enclosure 12/24VDC 4A

eFlow4N

Altronix eFlow4N is a power supply/charger converts a 120VAC 60Hz input into a single Class 2 power-limited output. Power supply/charger is selectable for 12VDC or 24VDC with a total of 4A max. It also offers a suite of features that includes fire alarm disconnect, overvoltage protection, and low power disconnect which prevents deep discharge of stand-by batteries.
