Altronix BTL125

Electrical

• Normal Voltage: 12.8V.
• Rated Capacity: 4.5 +/-0.3A/H.
• Energy: ~57.6W/H.
• Overcharge and overdischarge protection.

Standard Charge

• Charge Voltage: 14.4 +/-0.15V.
• Charge Current: 1A.
• Max. Charge Current: 2.25A.

Standard Discharge

• Continuous Current: 2.25A.
• Max. Continuous Current: 8A (for ~5 min.)
• Discharge Cut-off Voltage: 10.0V.

Temperature

Operating:

• Charging: 0ºC to 45ºC (32ºF to 113ºF).
• Discharging: -20ºC to 60ºC (-4ºF to 140ºF).
• Storage: 0° C to 40° C (32° F to 104° F).
• Relative Humidity: 85% +/- 5%.

Operating Altitude

• – 304.8 to 2,000m.

Electrical

• Normal Voltage: 12.8V.
• Rated Capacity: 4.5 +/-0.3A/H.
• Energy: ~57.6W/H.
• Overcharge and overdischarge protection.

Standard Charge

• Charge Voltage: 14.4 +/-0.15V.
• Charge Current: 1A.
• Max. Charge Current: 2.25A.

Standard Discharge

• Continuous Current: 2.25A.
• Max. Continuous Current: 8A (for ~5 min.)
• Discharge Cut-off Voltage: 10.0V.

Temperature

Operating:

• Charging: 0ºC to 45ºC (32ºF to 113ºF).
• Discharging: -20ºC to 60ºC (-4ºF to 140ºF).
• Storage: 0° C to 40° C (32° F to 104° F).
• Relative Humidity: 85% +/- 5%.

Operating Altitude

• – 304.8 to 2,000m.

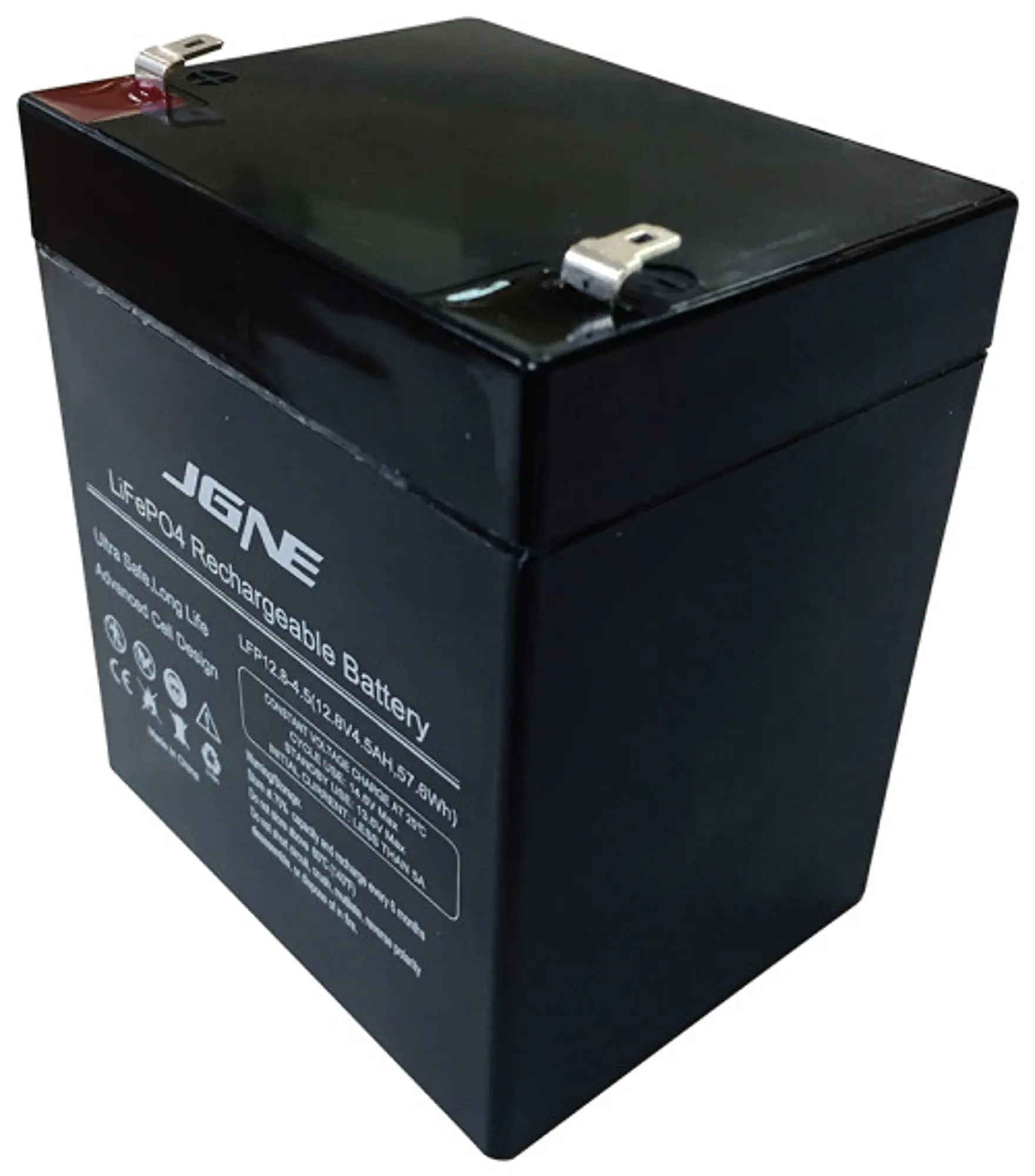

Rechargeable Lithium Iron Phosphate (LiFePO₄) Battery 12VDC 4.5AH

Altronix BTL125 rechargeable Lithium Iron Phosphate (LiFePO₄) Battery supplies 12VDC for security, access, surveillance, and fire applications. It offers up to 10 times longer cycle life with only about 50% of the weight of a comparable lead acid battery.
