Altronix AL400ULM

Input

Input 115VAC / 60Hz, 3.5A.

Input fuse rated @ 5A/250V.

Fire Alarm Panel or Access Control System trigger inputs. N.O. or N.C. supervised trigger input and polarity reversal trigger input.

Output

12VDC or 24VDC selectable outputs.

12VDC @ 4A or 24VDC @ 3A supply current.

Burglar Alarm Applications:

12VDC = 10VDC-13.2VDC;

24VDC = 20VDC-26.4VDC.

Five (5) PTC protected Class 2 Rated power limited outputs, rated @ 2A (auto-resettable).

Output relay energizes when unit is triggered (form “C” contact rated 1A @ 28VDC).

Filtered and electronically regulated output.

Short circuit and thermal overload protection.

Battery Charging

Built-in charger for sealed lead acid or gel type batteries.

Automatic switch over to stand-by battery when AC fails.

Supervision

AC fail supervision (form “C” contacts).

Notification trigger is selectable for 30 seconds (factory set) or 6 hours.

Low battery supervision (form “C” contacts).

Battery presence supervision (form “C” contacts).

Power fail supervision relay (form “C” contacts).

Visual Indicators

AC input and DC output LED indicators (power supply board).

Red LEDs indicate condition of power outputs (multi-output board).

Power & input trigger LEDs (multi-output board).

Temperature

Operating: 0° C to 49° C (32° F to 120° F).

Storage: – 20° C to 70° C ( – 4° F to 158° F).

Relative Humidity: 85% +/- 5%.

BTU/Hr. (approx.):

12VDC: 25 BTU/Hr.

24VDC: 37 BTU/Hr.

System AC input VA requirement: 402.5VA.

Input

• Input 115VAC / 60Hz, 3.5A.
• Input fuse rated @ 5A/250V.
• Fire Alarm Panel or Access Control System trigger inputs. N.O. or N.C. supervised trigger input and polarity reversal trigger input.

Output

• 12VDC or 24VDC selectable outputs.
• 12VDC @ 4A or 24VDC @ 3A supply current.

Burglar Alarm Applications:

• 12VDC = 10VDC-13.2VDC;
• 24VDC = 20VDC-26.4VDC.
• Five (5) PTC protected Class 2 Rated power limited outputs, rated @ 2A (auto-resettable).
• Output relay energizes when unit is triggered (form “C” contact rated 1A @ 28VDC).
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.

Battery Charging

• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails.

Supervision

• AC fail supervision (form “C” contacts).
• Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
• Low battery supervision (form “C” contacts).
• Battery presence supervision (form “C” contacts).
• Power fail supervision relay (form “C” contacts).

Visual Indicators

• AC input and DC output LED indicators (power supply board).
• Red LEDs indicate condition of power outputs (multi-output board).
• Power & input trigger LEDs (multi-output board).

Temperature

• Operating: 0° C to 49° C (32° F to 120° F).
• Storage: – 20° C to 70° C ( – 4° F to 158° F).
• Relative Humidity: 85% +/- 5%.

BTU/Hr. (approx.):

• 12VDC: 25 BTU/Hr.
• 24VDC: 37 BTU/Hr.
• System AC input VA requirement: 402.5VA.

5-Output Power Supply Charger with Enclosure 12/24VDC 4A

AL400ULM

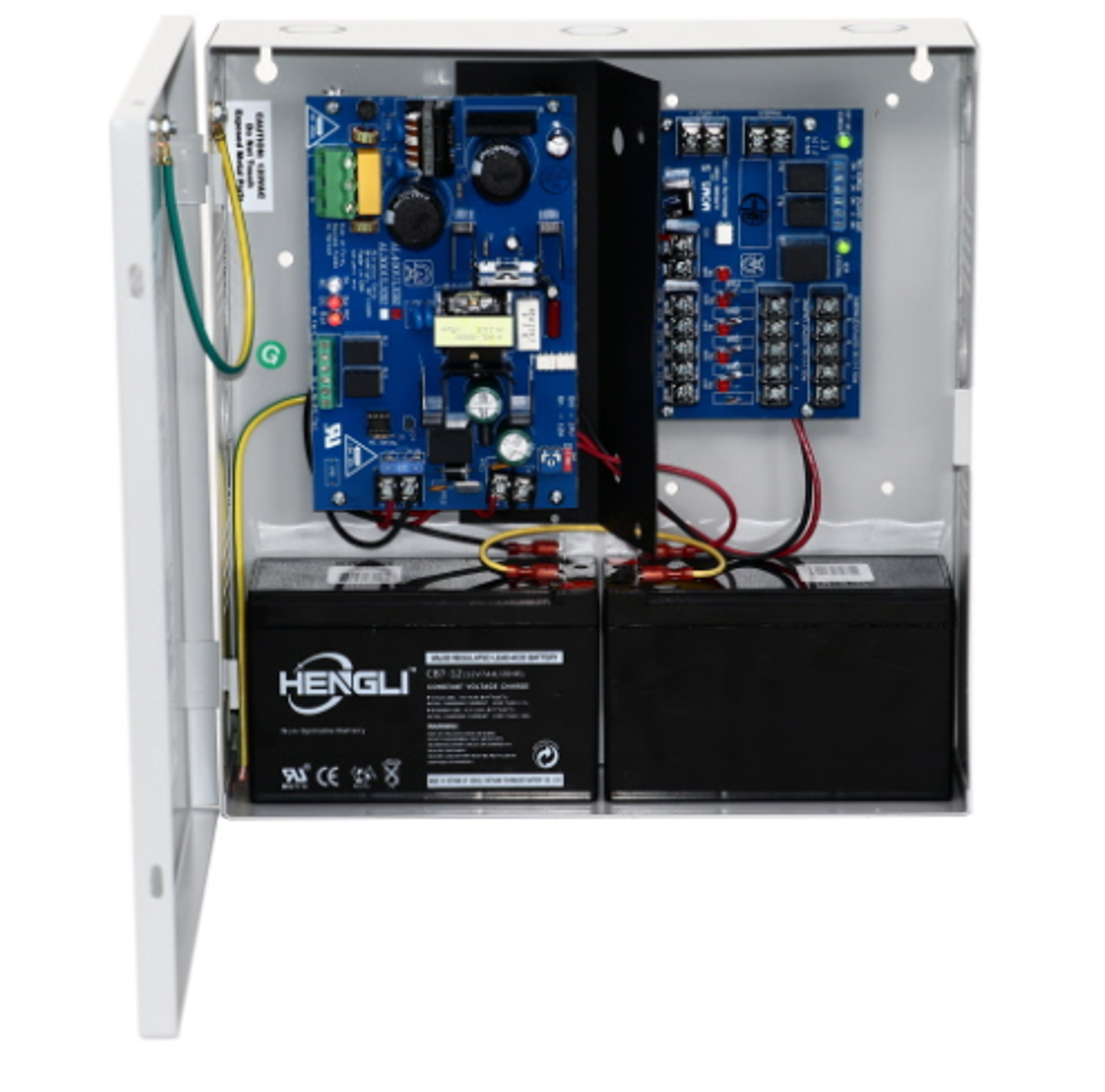

AL400ULM multi-output access control power supply/charger is specifically designed for use with access control systems and accessories. This unit converts a 115VAC / 60Hz input into five (5) individually protected Class 2 Rated power limited 12VDC or 24VDC outputs. Each output will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. These outputs will operate in both Fail-Safe and Fail-Secure modes. Controlled trigger input is achieved through normally open (N.O.) or normally closed (N.C.)supervised input or the polarity reversal from an FACP (Fire Alarm Control Panel). A form “C” dry output relay enables HVAC Shutdown, Elevator Recall or it may be used to trigger auxiliary devices.
