Altronix AL175ULX
SKU: ALT-AL175ULX
MPN: AL175ULX
Description
2-Output Switching Power Supply Charger with Enclosure 12/24VDC UL294
Send to a friend!
SKU: ALT-AL175ULX
MPN: AL175ULX
2-Output Switching Power Supply Charger with Enclosure 12/24VDC UL294
Send to a friend!
Input
Input 115VAC, 60Hz, 0.6A.
Access control trigger input.
Output
12VDC or 24VDC selectable outputs.
1.75A supply current.
Two (2) Class 2 Rated power limited outputs.
Fail-Safe/Fail-Secure lock output (switched).
Auxiliary power output (unswitched).
PTC protected outputs, rated @ 2.5A.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.
Battery Charging
Automatic switch over to stand-by battery when AC fails.
Maximum charge current: 400mA.
(Batteries are sold separately).
Supervision
AC fail supervision (form “C” contacts).
Supervised Fire Alarm Disconnect (Latching w/reset or Non-Latching).
Visual Indicators
AC input and DC output LED indicators.
Temperature
Operating: 0ºC to 49ºC (32ºF to 120ºF).
Storage: – 20ºC to 70ºC ( – 4ºF to 158ºF).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
12VDC: 11 BTU/Hr.
24VDC: 22 BTU/Hr.
System AC input VA requirement: 69VA.

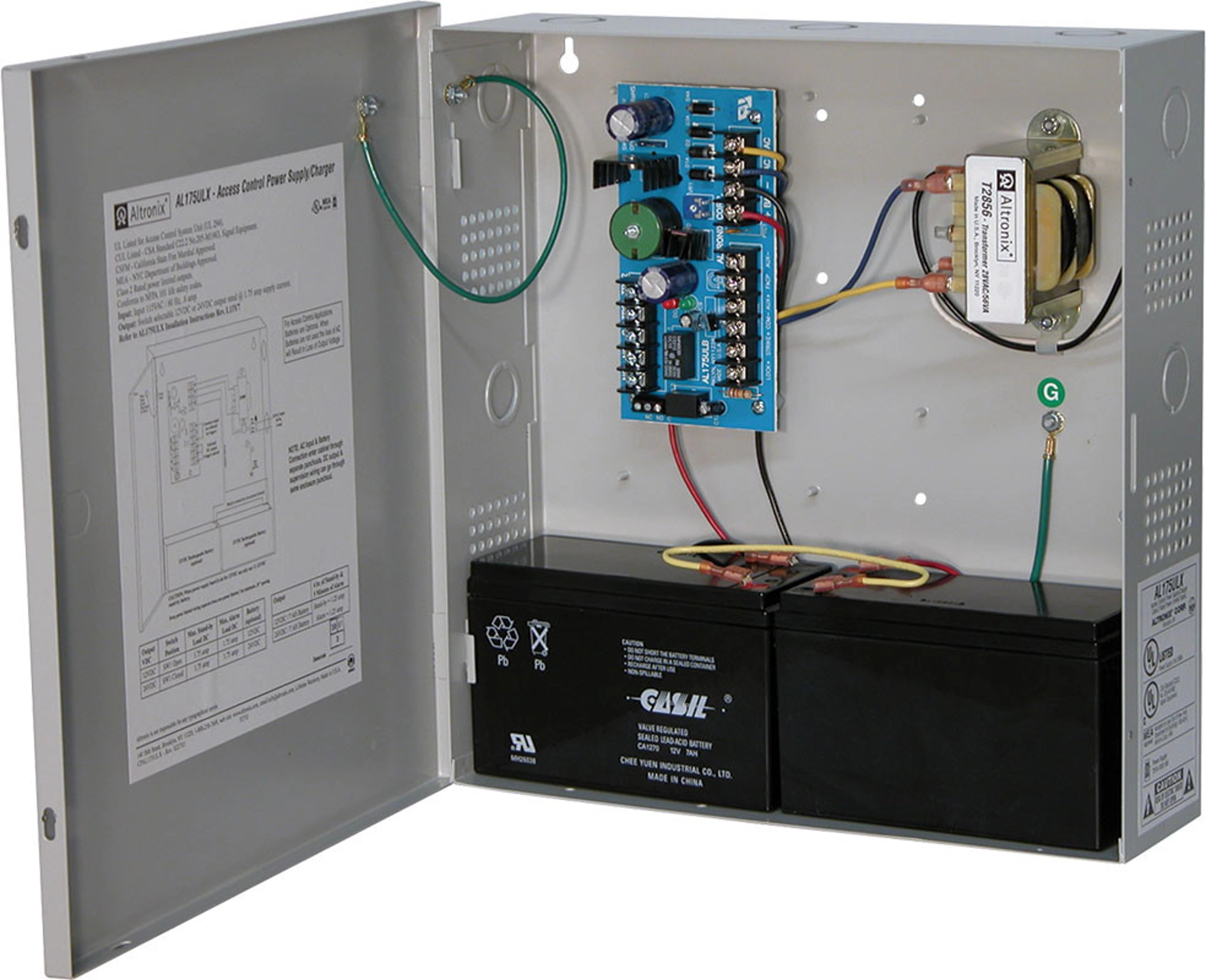

AL175ULX
Altronix AL175ULX is a Two (2) Output Switching Power Supply/Charger that converts a 115VAC 60Hz input, into two (2) individually PTC protected 12VDC or 24VDC outputs.
