Alarm.com ADC-V523X

• Power: 12VDC 1A Transformer
• Recording Compression: H.264
• Max Resolution: 1920 x 1080
• Image Sensor: 1/2.7 CMOS, 2.1 MP, 1920 x 1080, HDR
• Lens: 3.0mm, F2.0
• Viewing Angle: 117°
• Low-Light Sensitivity: 0 lux with IR
• IR Range: Up to ~15 feet
• Image Adjustments: Flip, Brightness, Contrast, Saturation, Sharpness, Exposure
• Outdoor Use: No
• Network Connection: WIFI or Ethernet
• WIFI Connectivity: 802.11 b/g/n, 2.4 & 5 GHz
• WPS Capability: Yes
• AP Connection:
• Power over Ethernet (PoE): No
• Operating Temperature: 32°F to 104°F
• Operating Humidity: 95% Non-condensing
• Dimensions: 2.4″L x 3.0″W x 3.7″D (6cm x 7.6cm x 9.4cm)
• Included Accessories: Power Adapter, Mounting Hardware

• It is compatible with the Alarm.com Video Analytics 3000 service which will allow you more control of your surveillance.
• This camera has an impressive 117 degree field of view giving you a wide look at the area you’re covering.
• You’ll also get a great picture using this camera as it features 1080p HD resolution.
• It also features HDR (High Dynamic Range) which will help improve color and contrast in video images.
• This camera also has two-way audio for talking back and forth between yourself and whoever is in the vicinity of the camera.
• The camera uses a 3.0 mm lens and a 1/2.7 CMOS 2.1 MP image sensor.
• It uses the H.264 recording format to capture video footage.
• The V523X also has IR night vision and can see in total darkness up to 15ft.
• You can control certain aspects of video effects such as flipping the image, adjusting brightness, adjusting contrast, changing color saturation, sharpness, and exposure.
• The ADC-V523X is ethernet and WI-FI capable so you can use either method to connect the camera to the internet.

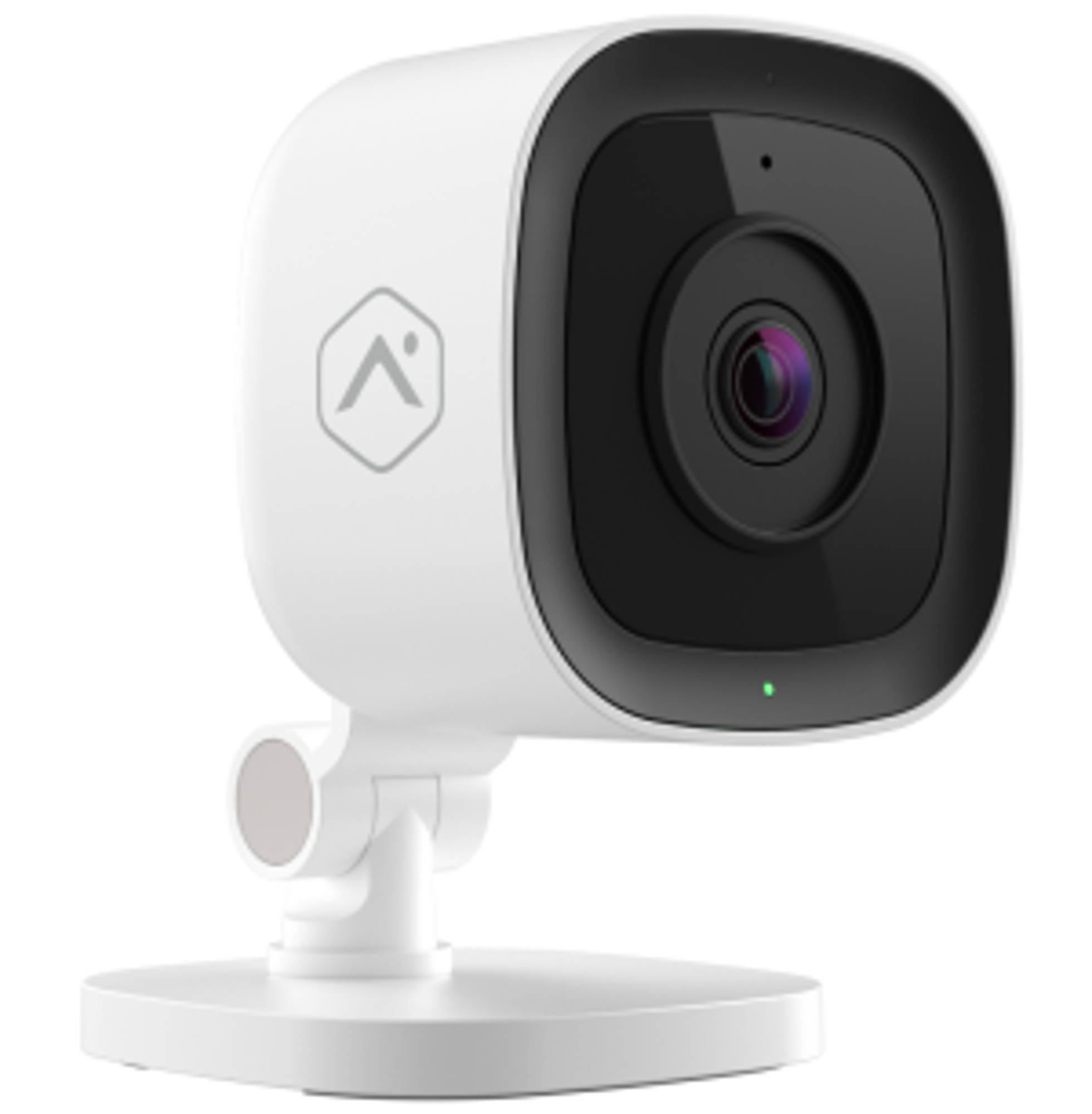

2MP Indoor WiFi Camera with IR Night Vision and High Dynamic Range

ADC-V523X

Get smarter video alerts and high-quality live and recorded video with the ADC-V523X. Powerful Video Analytics from Alarm.com can detect and alert you to people, vehicles, and animals entering your property. With a wide field of view, night vision, and High Dynamic Range (HDR), the ADC-V523X lets you see whats important no matter the time of day or lighting conditions. Pair with an Alarm.com Stream Video Recorder for 24/7 local recording or with an Alarm.com security system for cloud-based alarm and sensor-triggered clip recordings (additional hardware required).
