Aiphone ACS-2DR

Two-Door Access Control Starter Kit

ACS-2DR

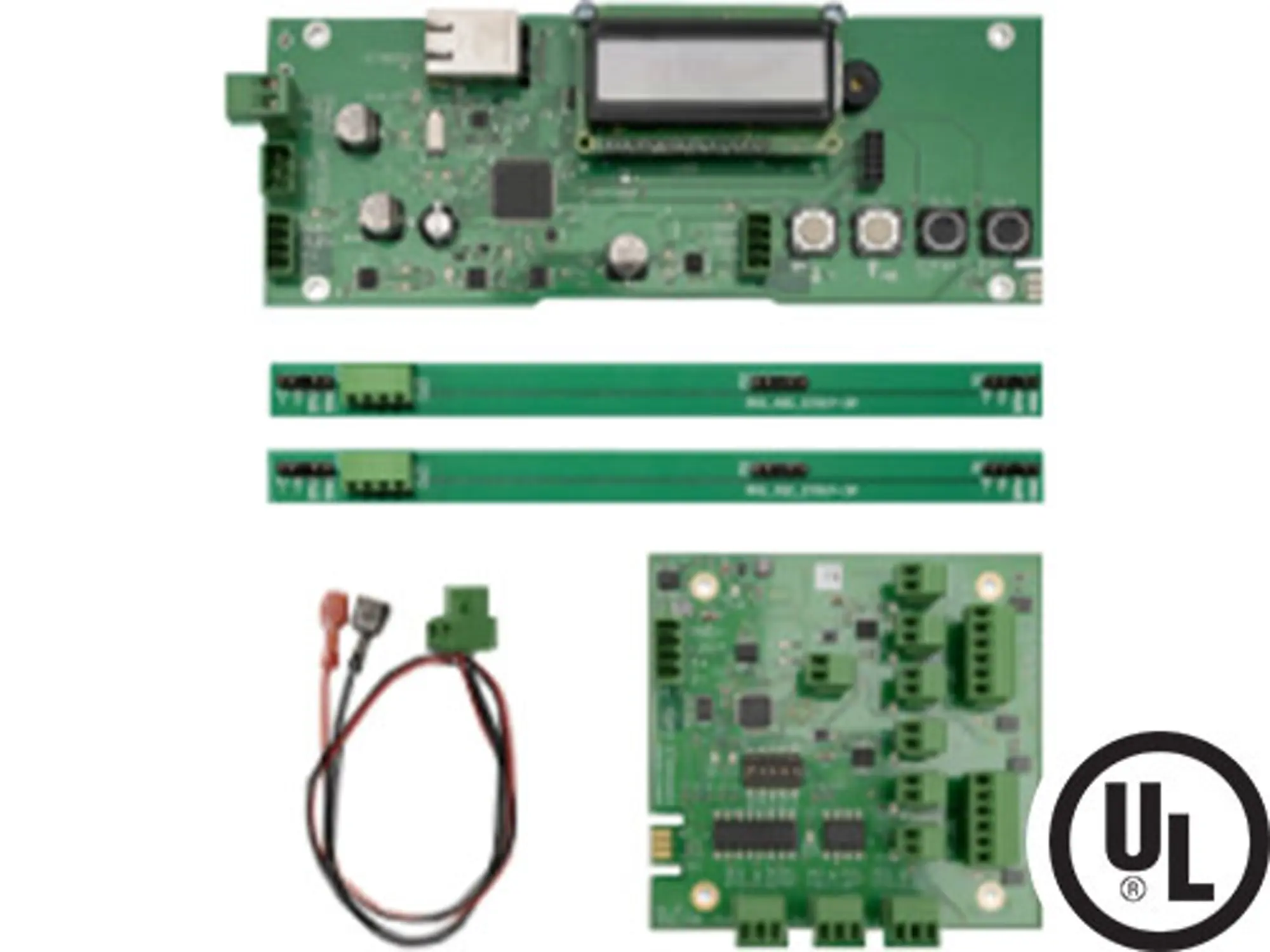

The ACS-2DR starter kit is a 2-8 door master door controller which includes a master door control board and a twodoor expander board (AC2DE). This kit fits into the AC-CA1 enclosure (sold separately), which includes a power supply.

Each AC-2DE has contacts and reader inputs to control two doors. Up to three AC-2DE door control boards can be added to the AC-CA1 enclosure, allowing it to control up to eight doors. For each door, the AC2DE provides two dry contact outputs, one wet contact output, and three programmable contact inputs.

This kit can be used on its own or as part of a larger AC Series access control system with additional AC-2DM modules and ACS-2DR panels. The system is managed using the AC Nio management software, with partitioning options available.

• Two Wiegand reader inputs (per AC-2DE)
• Integrated lock power for each door (12V DC, 500mA)
• Two solid state dry contact relays (per door)
• Three dry contact inputs (per door)
• Built-in diagnostic LCD
• Custom scripting and actions available
• Can support up to 8 doors with additional AC-2DE
• Short and over-voltage protection
• Dedicated port for battery backup
• TAA and NDAA Compliant
