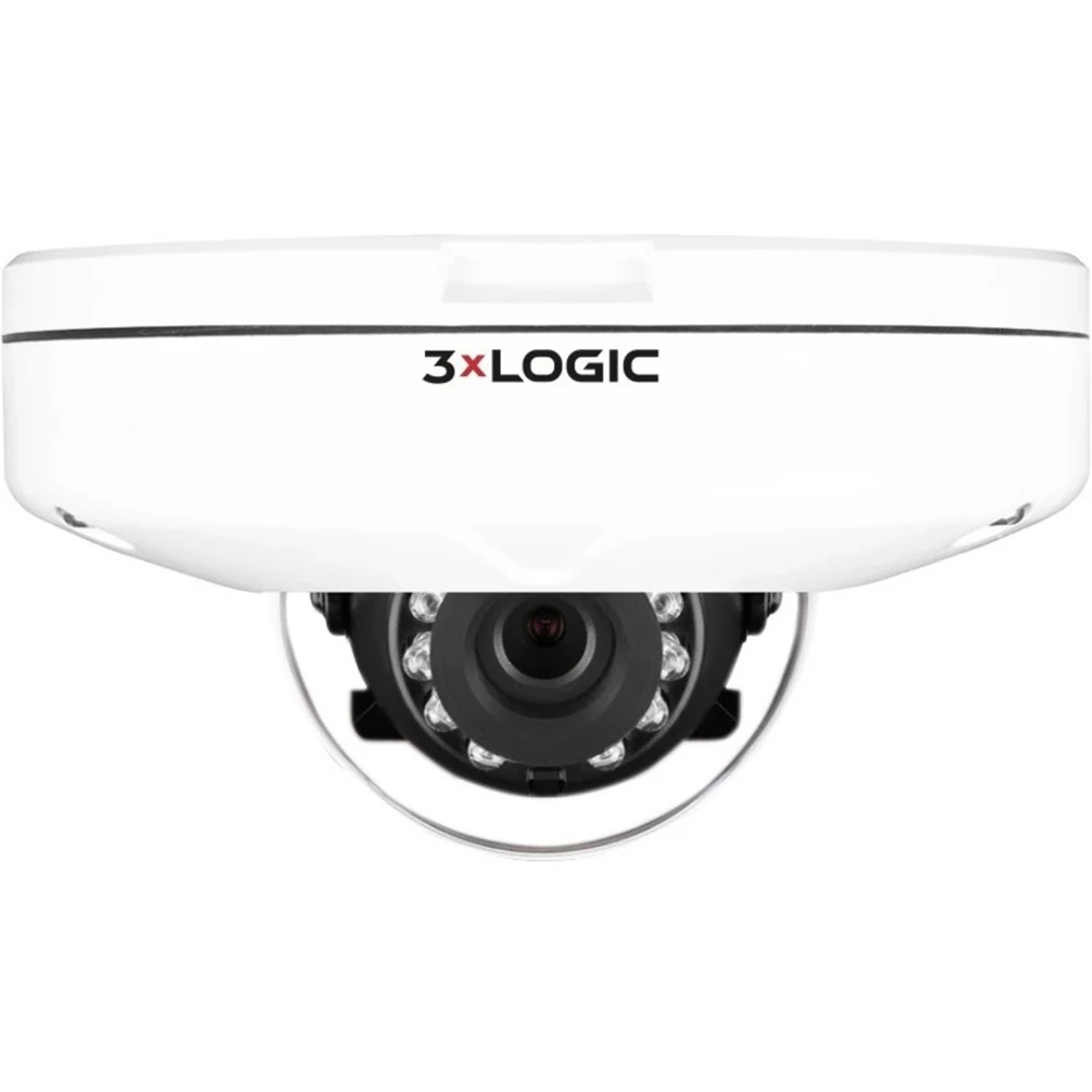

3xLOGIC VX-SMBK-D-IW VISIX 4MP Mini Dome Network Camera, Indoor/Outdoor, IR, WDR, IP67, IK10
3xLOGIC VX-SMBK-D-IW VISIX 4MP Mini Dome Network Camera, Indoor/Outdoor, IR, WDR, IP67, IK10
3xLOGIC
VX-SMBK-D-IW
0 out of 5 star rating
0
$258.85
Brand New
Availability:
In stock , ready to be shipped .
Manufacturer Brochure
Free Shipping
4 Year Warranty
30 Day Returns
Carbon Neutral
Maximum Video Resolution: 2560×1440

2560×1440
2592×1944
Maximum Frame Rate: 20fps

20fps
30fps
Effective Camera Resolution: 4Megapixel

4Megapixel
5Megapixel
Part Number: VX-SMBK-D-IW

VX-SMBK-D-IW
Product Key Features
4 Megapixel HD Network Camera with Mini Dome design
Fixed lens with a maximum aperture of f/2 and a focal length of 4mm
Supports video formats including H.264, MJPEG, and H.265
Maximum video resolution of 2560 x 1440 and a maximum frame rate of 20 fps
Features built-in card reader, motion detection, tamper detection, wide dynamic range, day/night functionality, SD card local storage, and motion tracking
Suitable for both indoor and outdoor use with an impact protection rating of IK10 and an ingress protection rating of IP67
Network (RJ-45) interface for wired connectivity
Powered by 12 V DC input voltage
Offers a field of view of D:95.1°, H:81.0°, V:43.1°
4-year limited warranty
$258.85
FREE Returns
From $23.36/mo or 0% APR with
Check your purchasing power

FREE Delivery
Order in the next
21
hrs

58
mins

to be delivered on
Wednesday, Dec 4

Shipping information

We ship orders 24-48 hours after they have been placed. It might take up to an additional 48 hours to ship international orders.

1
Add extended warranty
SureBright
see details

ADD TO CART

Buy with
More payment options

Ask Our Experts
Live chat
Contact us
Call Us Now
888.267.9566
Description
Tech Specs
Refund Policy
General Information
Manufacturer 3xLOGIC Inc.
Manufacturer Part Number VX-SMBK-D-IW
Brand Name 3xLOGIC
Product Line VISIX
Product Name VISIX 4MP, Fixed 4mm Lens, Indoor/Outdoor Mini-Dome with IR, WDR, IP67, IK10
Product Type Network Camera
Technical Information
Recording Formats HD
HD Recording Yes
Night Vision Distance 98.43 ft
Display & Graphics
Image Sensor Type CMOS
Color Supported Color
Field of View D:95.1°, H:81.0°, V:43.1°
Effective Camera Resolution 4 Megapixel
Video
Video Formats H.264,MJPEG,H.265
Maximum Video Resolution 2560 x 1440
Maximum Frame Rate 20 fps
Lens
Lens Type Fixed
Maximum Focal Length 4 mm
Lens Included Yes
Maximum Aperture f/2
Exposure
Shortest Shutter Speed 1/32000 Second
Longest Shutter Speed 1/15 Second
Network & Communication
Connectivity Technology Wired
Remote Management Yes
Interfaces/Ports
Network (RJ-45) Yes
Power Description
Input Voltage 12 V DC
Physical Characteristics
Mount Type Junction Box Mount,Pendant Mount,Wall Mount,Corner Mount,Pole Mount,Gang Plate
Form Factor Mini Dome
Durability Weather Resistant,Water Proof
Height 2.4
Diameter 4.1
Weight (Approximate) 10.58 oz
Environmental Conditions
Minimum Operating Temperature -4°F (-20°C)
Maximum Operating Temperature 122°F (50°C)
Operating Humidity 90%
Miscellaneous
Features Built-in Card Reader,Motion Detection,Tamper Detection,Wide Dynamic Range,Day/Night,SD Card Local Storage,Motion Tracking
Indoor/Outdoor Indoor/Outdoor
Package Contents
VISIX 4MP, Fixed 4mm Lens, Indoor/Outdoor Mini-Dome with IR, WDR, IP67, IK10
Template Sheet
Torx Wrench
Waterproof Cap & Gasket
Screw & Anchor
Test Video Cable
Mount Bolt & Nut
Mount Plate
Moisture Absorber & Guide
Impact Protection Rating IK10
Ingress Protection Rating IP67
Warranty
Limited Warranty 4 Year

4 Megapixel HD Network Camera with Mini Dome design
Fixed lens with a maximum aperture of f/2 and a focal length of 4mm
Supports video formats including H.264, MJPEG, and H.265
Maximum video resolution of 2560 x 1440 and a maximum frame rate of 20 fps
Features built-in card reader, motion detection, tamper detection, wide dynamic range, day/night functionality, SD card local storage, and motion tracking
Suitable for both indoor and outdoor use with an impact protection rating of IK10 and an ingress protection rating of IP67
Network (RJ-45) interface for wired connectivity
Powered by 12 V DC input voltage
Offers a field of view of D:95.1°, H:81.0°, V:43.1°
4-year limited warranty

This infrared four (4) megapixel IP camera is the perfect combination of form and function providing high-definition video for network video surveillance applications requiring superior clarity and detail in varying lighting conditions.

The VX-SMBK-D-IW is packed with all the features you might need for nearly any application including: lowlight day/night functionality; IP67 weather-resistance and compatibility with a wide variety of standardized network protocols.

The convenient and aesthetically pleasing dome camera format allows for easy installation in a wide variety of areas. In addition, this camera is designed to continue functioning at top performance at temperatures as low as -20°C (-4° F) and as high as 50°C (122° F) allowing a wide range of applications.

Dual streaming allows recording at the highest quality while allowing fast live viewing from anywhere in the world regardless of available bandwidth. In addition, with full support for both variable bit rate and variable frame rate, the quality of each stream can be matched to available bandwidth for the most effective video quality possible.

When coupled with the VIGIL Series of digital video recorders and Video Management System (VMS) software, superior pointto-point hardware compression and decompression allows for maximum performance of streamed live video providing better video quality, more concurrent streams and a lower overall hit to CPU performance.
