SKU: TXL-VX-5M4-MD-IAW-S1TB
MPN: VX-5M4-MD-IAW-S1TB

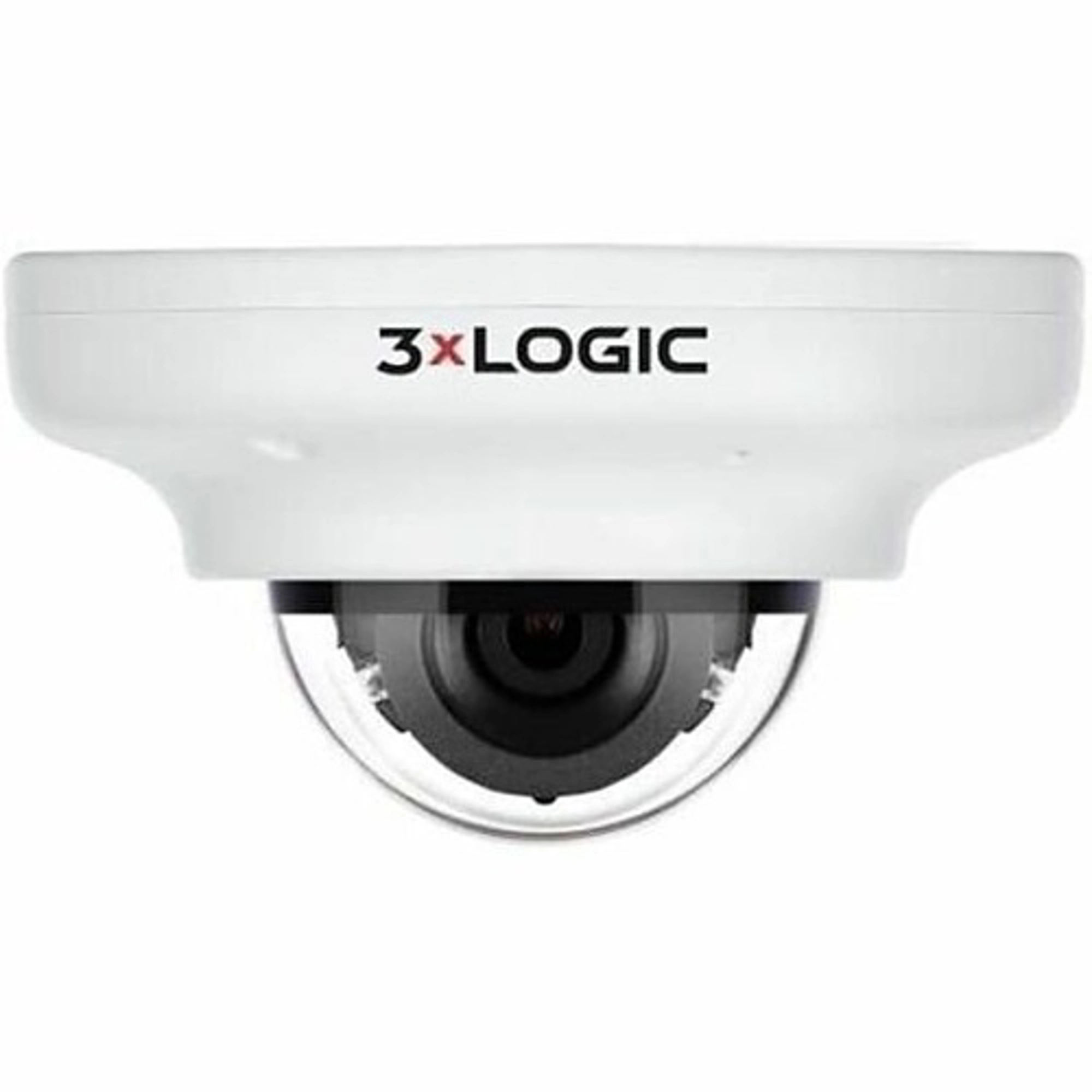

VISIX 5MP, Fixed 4mm Lens, Indoor/Outdoor Vandal Proof Mini-dome with IR and True WDR, IP67/IK10 rated with All-in-One Functionality and 1TB SD Card
Send to a friend!
| Night Vision Distance | 98.43 ft | Night Vision Distance (mm) | 30000 | Wide Dynamic Range | Yes |
| Color Supported | Color | Effective Camera Resolution (Pixel) | 5000000 | Maximum Video Resolution | 2592 x 1944 |
| Maximum Operating Temperature | 122°F (50°C) | Maximum Operating Temperature (°F) | 122 | Minimum Operating Temperature | -22°F (-30°C) | Minimum Operating Temperature (°F) | -22 | Operating Humidity | 90% |
| Brand Name | 3xLOGIC | Cloud Storage | Yes | Edge Enabled | Yes | Manufacturer | 3xLOGIC Inc. | Manufacturer Part Number | VX-5M4-MD-IAW-S1TB | Product Line | VISIX | Product Model | VX-5M4-MD-IAW | Product Name | VISIX 5MP, Fixed 4mm Lens, Indoor/Outdoor Vandal Proof Mini-dome with IR | Product Type | Network Camera | Weight (Approximate) (g) | 360 |
| Network (RJ-45) | Yes |
| Focal Length | 4 mm | Lens Included | Yes | Maximum Focal Length | 4 mm |
| Features | Audio Compression, Built-in IR LED, Day/Night, Motion Detection, Remotely Operated, SD Card Local Storage, Smart Object Detection, Tamper Detection, Video Management System, Wide Dynamic Range | Impact Protection Rating | IK10 | Indoor/Outdoor | Indoor, Outdoor | Ingress Protection Rating | IP67 | Package Contents |
|
| Remote Management | Yes |
| Color | White | Diameter (mm) | 105 | Durability | Impact Resistant, Vandal Resistant, Weather Resistant | Form Factor | Mini Dome | Height | 2.4″ | Height (mm) | 60.7 | Weight (Approximate) | 12.70 oz |
| Input Voltage | 12V DC |
| Diameter | 4.1″ | Mount Type | Ceiling Mount, Junction Box Mount, Pendant Mount, Wall Mount |
| Minimum Focal Length (mm) | 4 |
| Storage Type | Memory Card/Cloud |
| Connectivity Technology | Wired | Effective Camera Resolution | 5MP | Field of View | D : 106.6°, H : 82.3°, V : 58.8° | HD Recording | Yes | Lens Type | Fixed | Maximum Aperture | f/2.0 | Maximum Focal Length (mm) | 4 | Maximum Frame Rate | 30 fps | Night Vision | Yes | Night Vision Type | Infrared |
| Maximum Frame Rate (fps) | 30 |
| Limited Warranty | 4 Year |
