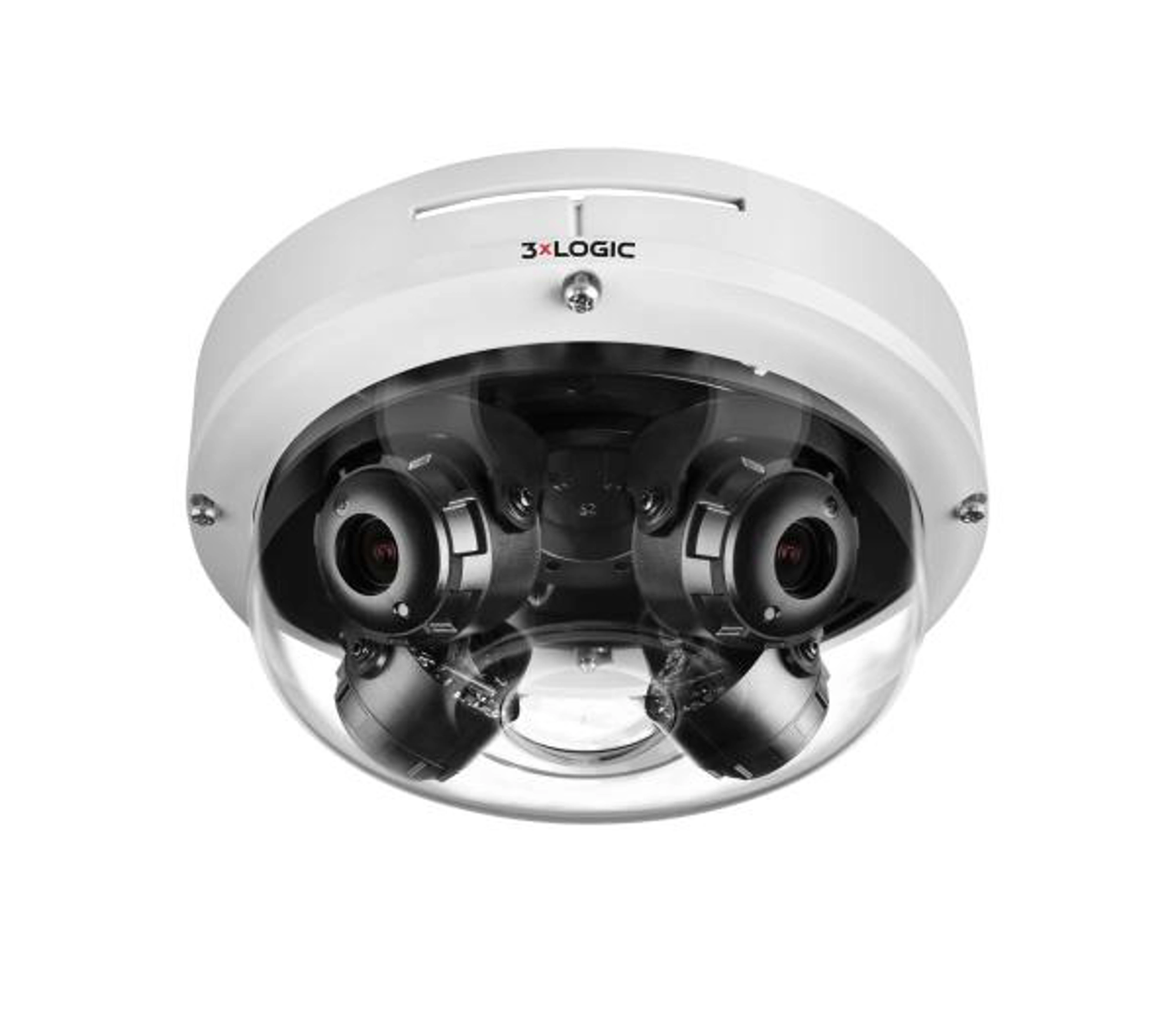

3xLogic VX-20M-SURROUND-OD-RAW
SKU: TXL-VX-20M-SURROUND-OD-RAW
MPN: VX-20M-SURROUND-OD-RAW
Description
VISIX 20MP Varifocal Multi-Imager (4 x 5MP) Surround Dome with WDR, Audio, and Alarm 4 x 2.8mm – 8mm Zoom.
Send to a friend!
SKU: TXL-VX-20M-SURROUND-OD-RAW
MPN: VX-20M-SURROUND-OD-RAW
VISIX 20MP Varifocal Multi-Imager (4 x 5MP) Surround Dome with WDR, Audio, and Alarm 4 x 2.8mm – 8mm Zoom.
Send to a friend!
Max Resolution – 4x 2592(H) X 1944(V)
Focal Length – 2.8mm – 8mm
Horizontal Angle – D : 64°~119°|H :51°~93°|V : 39°~68°
Adjustable camera positions on magnetic track
Video Compression – H.264, H.265, MJPEG
Audio In/Out – 1 Line [1.0Vms, 3K ohm]/1 Line
Alarm In/Out – 1 Line/1 Line
IP Rating – IP67
IK Rating – IK10
Ethernet – RJ45(1000Base-T(1Gbps))
Power – PoE IEEE 802.3 bt Class
Power Consumption – DC Max 37.2W PoE Max 41.8W
ONVIF Profile S
SD Card – 4x
Base model w/base analytics
20MP with the ability to adjust four 5MP imagers in one housing
Audio & Alarm capabilities
Pan/tilt options
Remote Zoom
Configurable by lens (FoV angles, frame rate, WDR) based on customer needs
4 x 2.8mm – 8mm Focal ranges varying by use case
True Wide Dynamic Range (WDR) for clear images in challenging lighting conditions
Clear Infrared (IR) images at 100’
Vandal-proof housing
Video Compression H264 , H265, & MJPEG
Max Resolution – 4x 2592(H) X 1944(V)
3x Logic
Multi-sensor IP cameras can combine the features of four separate imagers into one housing without losing the ability to pan, tilt, and zoom each sensor individually. Challenging corner mount applications can be solved by positioning one of the imagers in the center of the unit by facing it down. Use cases include retail, education (cafeteria, auditorium), large commercial, warehousing, parking lots, data centers, or any other applications where video coverage is needed for a large area.
